Lightning barrier

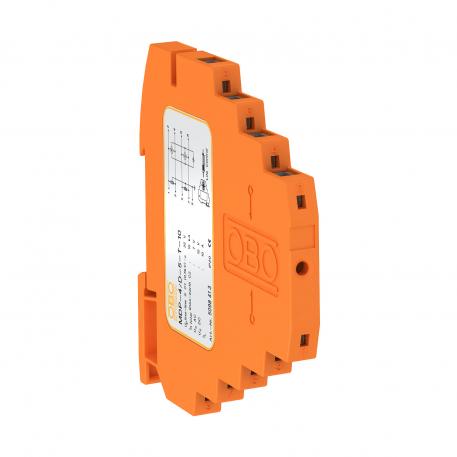

MDP-4 D-5-T-10: Lightning barrier with test function; 5 V version
• Nominal load current 10 A
• Protection device for multi-wire systems
• Direct shield earthing and screwless connection terminals
• Space-saving width of just 8.7 mm
• Protection circuit testable with Life Control
• High bandwidth to 100 MHz
• UL-listed (4DG1)
Application: Universal use on 35 mm hat profile rail in any standard distribution housing.
Lightning protection zone LPZ : 0→3
Maximum continuous voltage AC: 7 V
Maximum continuous voltage DC: 10 V
Rated current: 10 A
Impulse durability wire-wire: C1: 0,5 kV / 0,25 kA (8/20µs)
Total discharge current (8/20): 10 kA
Total discharge current (10/350): D1: 2 kA
Protection level wire-wire: <45 V
Protection level wire-earth: <800 V
Frequency range: 0 - 100 MHz
Fabrikat: OBO BETTERMANN
Type: MDP-4 D-5-T-10
Item no. : 5098413
